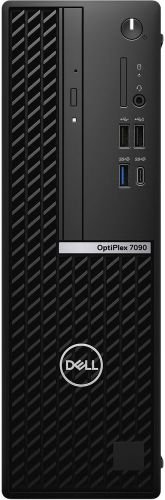

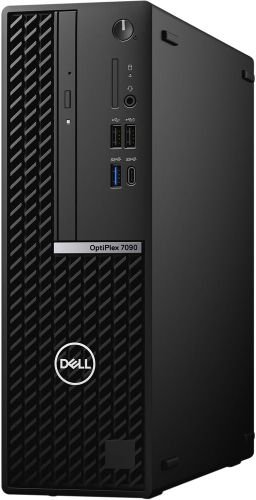

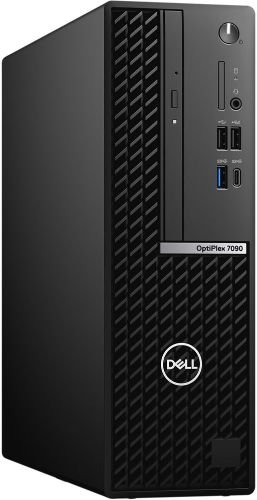

Model Name: Dell Optiplex 7090 SFF (Small Form Factor)
Dimensions (H x W x D): Front 290 mm (11.42 in.), Rear 290 mm (11.42 in.) x Width 92.60 mm (3.65 in.) x Depth 292.80 mm (11.53 in.)
Weight: 4.46 kg (9.84 lb) (min) to 5.72 kg (12.61 lb) (max)
Operating system: Windows OS
Processor Options: Intel? Core? i5-10500 Processor (3.1GHz Up To 4.5GHz Max Turbo Frequency) 12 MB Intel? Smart Cache, 6-Cores 12 Threads | Intel? UHD Graphics 630
Intel? Core? i5-11500 Processor (2.7GHz Up To 4.6GHz Max Turbo Frequency) 12 MB Intel? Smart Cache, 6-Cores 12 Threads | Intel? UHD Graphics 750:
Intel? Core? i7-10700 Processor (2.9GHz Up To 4.8GHz Max Turbo Frequency) 16 MB Intel? Smart Cache, 8-Cores 16 Threads | Intel? UHD Graphics 630:
Intel? Core? i3-10105 Processor ( 3.7GHz Max Turbo Frequency Up to 4.4GHz) 6 MB Intel? Smart Cache, 4 Cores 8 Threads | Intel? UHD Graphics 630:
Graphic Card Discrete Options: AMD Radeon RX640 4GB GDDR5
AMD Radeon 550 GDDR5 2GB:
AMD Radeon 540 GDDR5 1GB:
Memory: 8GB RAM | 16GB RAM | 32GB RAM | 64GB RAM
Storage: 128GB SSD | 240GB SSD | 256GB SSD | 500GB HDD | 512GB SSD | 1TB HDD | 1TB SSD | 2TB HDD

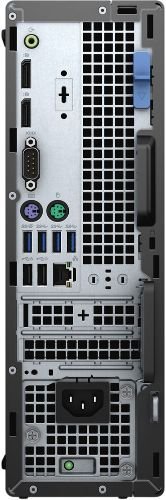

External Ports: Network port:- One RJ45 Ethernet port (rear)
USB ports: – One USB 3.2 Gen 2 port (front) | One USB 3.2 Gen 2×2 capable type-C port (front) | One USB 2.0 port (front) | One USB 2.0 port with PowerShare (front) | Three USB 3.2 Gen 1 ports (rear) | One USB 3.2 Gen 2 port (rear) | Two USB 2.0 ports with SmartPower on (rear)
Audio port: – One Universal audio port (front) | One Re-tasking Line-out/Line-in audio port (rear)
Video port: – Two DisplayPort 1.4 ports (rear) | One VGA port (rear, optional) | One DisplayPort 1.4 port (rear, optional) | One HDMI 2.0b port (rear, optional) | One USB 3.2 Gen 2 type-C port with DisplayPort Alt Mode (rear, optional) | One VGA/DisplayPort 1.4/ HDMI 2.0b port (rear, optional)
Media-card reader: – One SD 4.0 card slot (front, optional card)
Power-adapter port: – Not supported
Security-cable slot: – One Kensington lock slot | One Padlock ring
Internal slots: PCIe Expansion:- One Half-height Gen4 PCIe x16 slot | One Half-height Gen3 PCIe x4 slot
SATA: – Three SATA 3.0 slot for 3.5-inch/2.5-inch hard drive and slim optical drive
M.2: – One M.2 2230 slot for WiFi and Bluetooth card | One M.2 2230/2280 slot for SSD/Intel Optane | One M.2 2280 slot for SSD/Intel Optane
Ethernet Model number: Intel I219 | Transfer rate:- 10/100/1000 Mbps
Wireless Standards: WiFi 802.11a/b/g | Wi-Fi 4 (WiFi 802.11n) | Wi-Fi 5 (WiFi 802.11ac) | Wi-Fi 6 (WiFi 802.11ax)
Encryption: 64-bit and 128-bit WEP | 128-bit AES-CCMP | TKIP
Bluetooth: 5.0 or 5.1
Audio type: Waves MaxxAudio | Audio controller:- Waves MaxxAudio API | Internal audio interface:- Intel HDA (high-definition audio) | External audio interface:- One Universal audio port (front), One Line-out audio port with re-tasking to Line-in(rear) | Speakers:- One (optional) | Speaker output average:- 2 W | Subwoofer output:- Not supported | Microphone:- Not supported
Media-card type: One SD 4.0 card slot
Media-cards supported: Secure Digital (mSD) | Secure Digital High Capacity(mSDHC) | Secure Digital Extended Capacity(mSDXC)
