Product name: Apple Mac Studio (2023)
Size: Height 3.7 inches (9.5 cm) x Width 7.7 inches (19.7 cm) x Depth 7.7 inches (19.7 cm)
Weight (M2 Max): 5.9 pounds (2.7 kg)
Weight (M2 Ultra): 7.9 pounds (3.6 kg)
Chip Options: Apple M2 Max chip:- 12-core CPU with 8 performance cores and 4 efficiency cores | 30-core GPU | 16-core Neural Engine | 400GB/s memory bandwidth | Media engine:- (Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW | Video decode engine | Two video encode engines | Two ProRes encode and decode engines)
: Apple M2 Max chip:- 12-core CPU with 8 performance cores and 4 efficiency cores | 38-core GPU | 16-core Neural Engine | 400GB/s memory bandwidth | Media engine:- (Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW | Video decode engine | Two video encode engines | Two ProRes encode and decode engines)
: Apple M2 Ultra chip:- 24-core CPU with 16 performance cores and 8 efficiency cores | 60-core GPU | 32-core Neural Engine | 800GB/s memory bandwidth | Media engine:- (Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW | Two video decode engines | Four video encode engines | Four ProRes encode and decode engines)
: Apple M2 Ultra chip:- 24-core CPU with 16 performance cores and 8 efficiency cores | 76-core GPU | 32-core Neural Engine | 800GB/s memory bandwidth | Media engine:- (Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW | Two video decode engines | Four video encode engines | Four ProRes encode and decode engines)
Memory Options: Apple M2 Max chip:- 32GB unified memory / 64GB unified memory / 96GB unified memory
: Apple M2 Ultra chip:- 64GB unified memory / 128GB unified memory / 192GB unified memory
Storage Options: Apple M2 Max chip:- 512GB SSD / 1TB SSD / 2TB SSD / 4TB SSD / 8TB SSD
: Apple M2 Ultra chip:- 1TB SSD / 2TB SSD / 4TB SSD / 8TB SSD
Display Support: (Apple M2 Max chip) Simultaneous support for up to five displays:- (Four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 60Hz over HDMI | Two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI))
: (Apple M2 Ultra chip) Simultaneous support for up to eight displays:- (Eight displays with up to 4K resolution at 60Hz | Six displays with up to 6K resolution at 60Hz | Three displays with up to 8K resolution at 60Hz) | Thunderbolt 4 digital video output:- (Support for native DisplayPort output over USB?C) | HDMI display video output:- (Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz | Support for variable refresh rate (VRR), HDR, and multichannel audio)
Audio: Built-in speaker | 3.5 mm headphone jack with advanced support for high-impedance headphones | HDMI port supports multichannel audio output

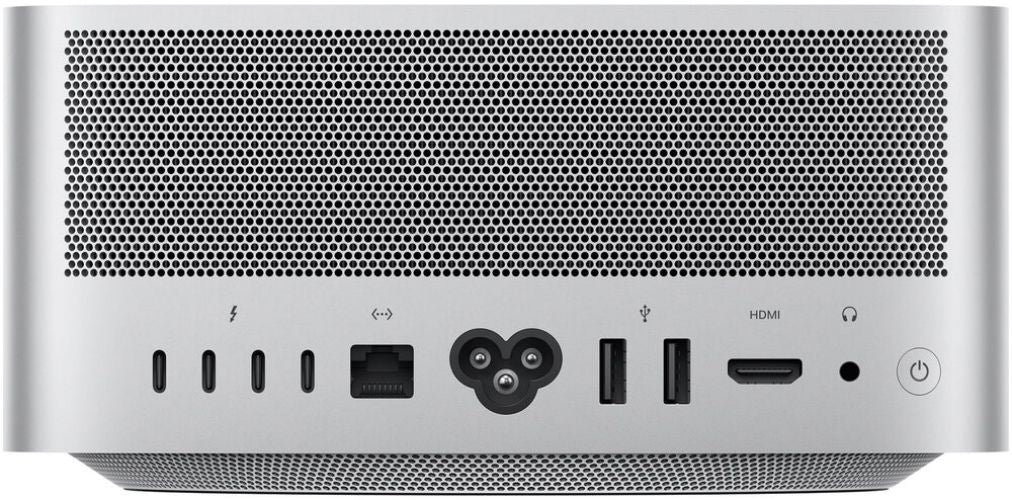

Connections and Expansion: Four Thunderbolt 4 ports with support for:- (Thunderbolt 4 (up to 40Gb/s) | DisplayPort | USB 4 (up to 40Gb/s) | USB 3.1 Gen 2 (up to 10Gb/s) | Two USB-A ports (up to 5Gb/s) | HDMI port | 10Gb Ethernet | 3.5 mm headphone jack)

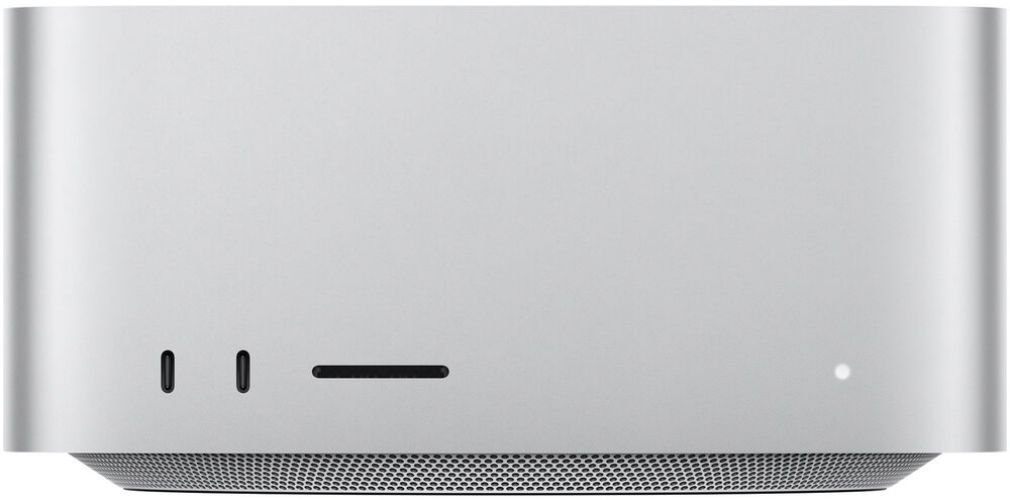

On front (M2 Max): Two USB-C ports (up to 10Gb/s) | SDXC card slot (UHS-II)
On front (M2 Ultra): Two Thunderbolt 4 ports (up to 40Gb/s) | SDXC card slot (UHS-II)
Wi-Fi: Wi-Fi 6E (802.11ax)
Bluetooth: Bluetooth 5.3
Ethernet: 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb, and 10Gb Ethernet using RJ-45 connector)
Operating System: macOS
In the Box: Mac Studio | Power cord
